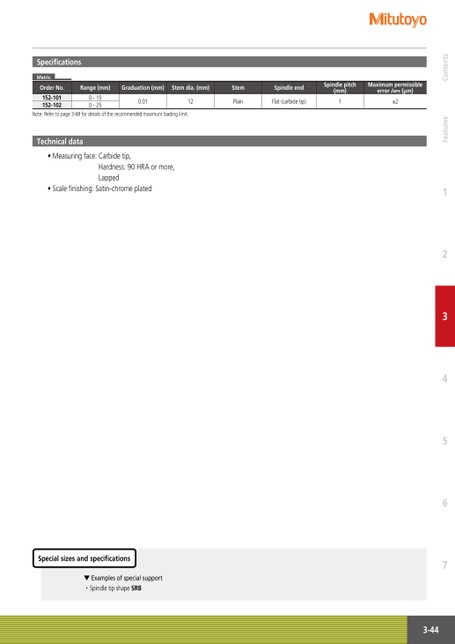

SpecificationsMetricCodeNo.152-101152-102Range(mm)Graduation(mm)Stemdia.(mm)0-150-250.0112StemPlainSpindleendSpindlepitch(mm)MaximumpermissibleerrorJMPE(µm)Flat(carbidetip)1±2•Measuringface:Material/Carbidetip,Hardness/90HRAormore,Lapped•Scalenishing:Satin-chromeplatedSpecialsizesandspecifications▼Examplesofspecialsupport・SpindletipshapeSR83-44
| <
|
> |
>>
